I. Physical Properties
Alloys containing titanium are known for their high strength, lightweight, and exceptional corrosion resistance.
Despite being as strong as steel, titanium is about 40 percent lighter in weight, which, along with its resistance to cavitation and erosion, makes it an essential structural metal for aerospace engineers.
Titanium is also formidable in its resistance to corrosion by both water and chemical media. It does this by forming a thin layer of titanium dioxide (TiO2) on its surface that is extremely difficult for these materials to penetrate.
Having a low modulus of elasticity means that titanium is not also very flexible, but returns to its original shape after bending, resulting in its importance to shape memory alloys.
Titanium is non-magnetic and biocompatible (non-toxic, non-allergenic), which has led to its increasing use in the medical field.
II. Competitive Advantages to other screws
Light:
Mass of titanium is approximately 60% that of low-carbon steel and stainless steel.
Reduced load imposed to the moving parts of machines; Weight reduction of portable objects
High-corrosion-resistant:
Excellent corrosion-resistance especially to seawater and saltwater
High-corrosion-resistance; prolonged life (life cycle cost is reduced); it enables further thinning gauge
Friendly to humans:
Passive films are formed instantly
Metal ions do not elute; titanium oxide hardly gives harmful influence to humans
Photocatalysts:
Oxide layer on the surface is strictly controlled.
Disinfection and sterilization effect; Water and air purification
Does not give a perception of coldness (Does not feel cold):
Volume-specific heat capacity is approximately 60% of low-carbon steel and stainless steel
Heated with small amount of heat; titanium does not give a perception of coldness when touched by a human.
III. Quick Details
| Item Name | Titanium Round Head Type Non Standard Parts with Acid Resistance |
| Material | Titanium, Titanium Alloy |
| Standard | DIN, ISO, ASTM, JIS, GB, etc |
| Specification | M1-M30 |
| Drive Type | Cross recessed, Allen, Hexagon Socket, Hex socket, Slotted, Hexalobular Socket, Torx, Phillips, Square, Spline |
| Surface Treatment | Plain, Polishing, Anodizing, PVD coating, Nyloc, Anti-fingerprint |
| Technique | Cold forging, CNC, Turning, Milling, etc. |
| Color | Natural, Blue, Green, Yellow, Gold, Black, Pink, Brown, Gradient, etc |
| OEM | Welcome |
| Sample | Available |
IV. Main products
Titanium fasteners and titanium alloy fasteners: bolts, screws, nails, implants, nuts, washers, etc.

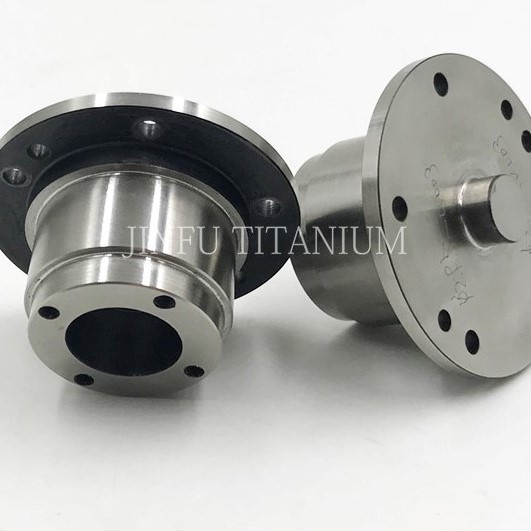

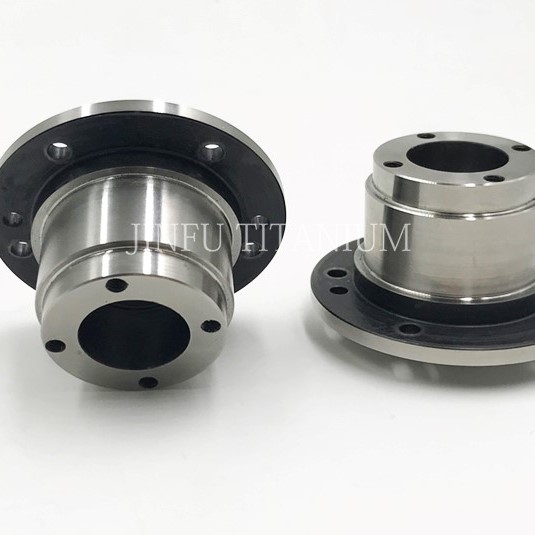

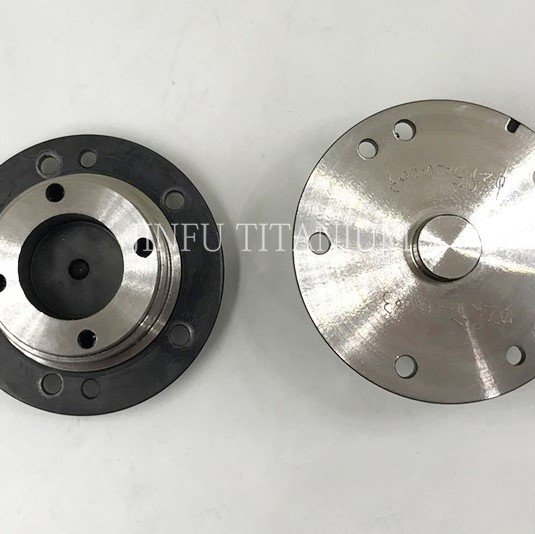

Titanium structural parts and custom parts
Colorful surface treatment: anodic oxidation
